Exercise: Advanced Quantile Forecasting with XTFT

Welcome to this exercise on advanced time series forecasting using the XTFT (Extreme Temporal Fusion Transformer) model from fusionlab-learn. XTFT is designed for complex scenarios, handling static, dynamic past, and known future features to produce multi-horizon quantile forecasts.

Learning Objectives:

• Understand the data preparation steps for XTFT, including feature definition and sequence generation.

• Learn how to instantiate, compile, and train an XTFT model for quantile forecasting using all three input types (static, dynamic, future).

• Practice making multi-step predictions and interpreting the quantile outputs.

• Visualize probabilistic forecasts to understand prediction uncertainty.

Let’s begin!

Prerequisites

Ensure you have fusionlab-learn and its common dependencies installed. For visualizations, matplotlib is also needed.

pip install fusionlab-learn matplotlib scikit-learn joblib

Step 1: Imports and Setup

First, we import all necessary libraries.

import numpy as np
import pandas as pd
import tensorflow as tf
import matplotlib.pyplot as plt
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler, LabelEncoder
import os
import joblib
import warnings

# FusionLab imports
from fusionlab.nn.transformers import XTFT
from fusionlab.nn.utils import reshape_xtft_data
from fusionlab.nn.losses import combined_quantile_loss
from fusionlab.datasets.make import make_multi_feature_time_series

warnings.filterwarnings('ignore')
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2'
tf.get_logger().setLevel('ERROR')
if hasattr(tf, 'autograph'):
    tf.autograph.set_verbosity(0)

exercise_output_dir_xtft = "./xtft_advanced_exercise_outputs"
os.makedirs(exercise_output_dir_xtft, exist_ok=True)
print("Libraries imported for XTFT exercise.")

Expected Output 1.1:

Libraries imported for XTFT exercise.

Step 2: Generate Synthetic Time Series Data

We use make_multi_feature_time_series() to generate data with static, dynamic, and future features.

n_items_ex = 3
n_timesteps_ex = 36
rng_seed_ex = 42
np.random.seed(rng_seed_ex)

# Generate data using the fusionlab utility
data_bunch_ex = make_multi_feature_time_series(
    n_series=n_items_ex,
    n_timesteps=n_timesteps_ex,
    freq='MS', # Monthly data
    seasonality_period=12, # Yearly seasonality
    seed=rng_seed_ex,
    as_frame=False # Get Bunch object to access feature lists
)
df_raw_ex = data_bunch_ex.frame.copy() # Work with a copy

print(f"Generated raw data shape for exercise: {df_raw_ex.shape}")
print(f"Columns: {df_raw_ex.columns.tolist()}")
print("Sample of generated data:")
print(df_raw_ex.head(3))

Expected Output 2.2:

(Shape and sample data will be consistent due to random seed. Column names will match those from `make_multi_feature_time_series`)

Generated raw data shape for exercise: (108, 9)
Columns: ['date', 'series_id', 'base_level', 'month', 'dayofweek', 'dynamic_cov', 'target_lag1', 'future_event', 'target']
Sample of generated data:
     date  series_id  base_level  ...  dayofweek  dynamic_cov     target

0 2020-01-01 0 50.049671 … 2 -0.069132 63.055435 1 2020-02-01 0 50.049671 … 5 0.841482 68.394497 2 2020-03-01 0 50.049671 … 6 1.761515 70.075474

[3 rows x 9 columns]

Step 3: Define Feature Roles and Scale Numerical Data

We use the feature lists provided by data_bunch_ex. Numerical features are scaled. series_id is already numerical.

target_col_ex = data_bunch_ex.target_col
dt_col_ex = data_bunch_ex.dt_col
# Use feature lists from data_bunch
static_cols_ex = data_bunch_ex.static_features
dynamic_cols_ex = data_bunch_ex.dynamic_features
future_cols_ex = data_bunch_ex.future_features
spatial_cols_ex = [data_bunch_ex.spatial_id_col]

scalers_ex = {}
# Define numerical columns to scale (excluding IDs and time components
# that might be treated as categorical by the model's embeddings)
num_cols_to_scale_ex = ['base_level', 'dynamic_cov', 'target_lag1', target_col_ex]
# Ensure 'month' and 'dayofweek' are not scaled if they are to be embedded
# or treated as categorical by the model.

df_scaled_ex = df_raw_ex.copy()
for col in num_cols_to_scale_ex:
    if col in df_scaled_ex.columns:
        scaler = StandardScaler()
        df_scaled_ex[col] = scaler.fit_transform(df_scaled_ex[[col]])
        scalers_ex[col] = scaler
        print(f"Scaled column: {col}")
    else:
        print(f"Warning: Column '{col}' for scaling not found in DataFrame.")

scalers_path_ex = os.path.join(
    exercise_output_dir_xtft, "xtft_exercise_scalers.joblib"
    )
joblib.dump(scalers_ex, scalers_path_ex)
print(f"\nScalers saved to {scalers_path_ex}")

Expected Output 3.3:

Scaled column: base_level
Scaled column: dynamic_cov
Scaled column: target_lag1
Scaled column: target

Scalers saved to ./xtft_advanced_exercise_outputs/xtft_exercise_scalers.joblib

Step 4: Prepare Sequences using reshape_xtft_data

Now, we use the static_cols_ex (which includes series_id and base_level) when calling reshape_xtft_data. This will ensure static_data_ex has features.

time_steps_ex = 12
forecast_horizons_ex = 6

# `static_cols_ex` from data_bunch is ['series_id', 'base_level']
# Both are numerical and can be used as static features.
static_data_ex, dynamic_data_ex, future_data_ex, target_data_ex = \
    reshape_xtft_data(
        df=df_scaled_ex,
        dt_col=dt_col_ex,
        target_col=target_col_ex,
        dynamic_cols=dynamic_cols_ex,
        static_cols=static_cols_ex, # Use actual static features
        future_cols=future_cols_ex,
        spatial_cols=spatial_cols_ex, # Group by 'series_id'
        time_steps=time_steps_ex,
        forecast_horizons=forecast_horizons_ex,
        verbose=1
    )

Expected Output 4.4:

(Shapes will reflect actual static features being used)

[INFO] Reshaping time‑series data into rolling sequences...

[INFO] Data grouped by ['series_id'] into 3 groups.

[INFO] Total valid sequences to be generated: 57

[INFO] Final data shapes after reshaping:
  [DEBUG] Static Data : (57, 2)
  [DEBUG] Dynamic Data: (57, 12, 4)
  [DEBUG] Future Data : (57, 18, 3)
  [DEBUG] Target Data : (57, 6, 1)

[INFO] Time‑series data successfully reshaped into rolling sequences.

Step 5: Train/Validation Split of Sequences

Split the generated sequence arrays.

val_split_fraction_ex = 0.2
if target_data_ex is None or target_data_ex.shape[0] == 0:
    raise ValueError("No sequences generated.")

n_samples_ex = target_data_ex.shape[0]
split_idx_ex = int(n_samples_ex * (1 - val_split_fraction_ex))

X_s_train, X_s_val = static_data_ex[:split_idx_ex], static_data_ex[split_idx_ex:]
X_d_train, X_d_val = dynamic_data_ex[:split_idx_ex], dynamic_data_ex[split_idx_ex:]
X_f_train, X_f_val = future_data_ex[:split_idx_ex], future_data_ex[split_idx_ex:]
y_t_train, y_t_val = target_data_ex[:split_idx_ex], target_data_ex[split_idx_ex:]

train_inputs_ex = [X_s_train, X_d_train, X_f_train]
val_inputs_ex = [X_s_val, X_d_val, X_f_val]

print(f"\nData split into Train/Validation sequences:")
print(f"  Train samples: {X_d_train.shape[0]}")
print(f"  Validation samples: {X_d_val.shape[0]}")
print(f"  Train Static Shape : {X_s_train.shape}")
print(f"  Train Dynamic Shape: {X_d_train.shape}")
print(f"  Train Future Shape : {X_f_train.shape}")
print(f"  Train Target Shape : {y_t_train.shape}")

Expected Output 5.5:

Data split into Train/Validation sequences:
  Train samples: 45
  Validation samples: 12
  Train Static Shape : (45, 2)
  Train Dynamic Shape: (45, 12, 4)
  Train Future Shape : (45, 18, 3)
  Train Target Shape : (45, 6, 1)

Step 6: Define XTFT Model for Quantile Forecast

Instantiate XTFT. static_input_dim will now be greater than 0. Explicitly set anomaly_detection_strategy=None.

quantiles_ex = [0.1, 0.5, 0.9]
output_dim_ex = 1

s_dim_ex = X_s_train.shape[-1] # Will be > 0 now
d_dim_ex = X_d_train.shape[-1]
f_dim_ex = X_f_train.shape[-1]

model_ex = XTFT(
    static_input_dim=s_dim_ex,
    dynamic_input_dim=d_dim_ex,
    future_input_dim=f_dim_ex,
    forecast_horizon=forecast_horizons_ex,
    quantiles=quantiles_ex,
    output_dim=output_dim_ex,
    embed_dim=16, lstm_units=32, attention_units=16,
    hidden_units=32, num_heads=2, dropout_rate=0.1,
    max_window_size=time_steps_ex, memory_size=20,
    scales=None,
    anomaly_detection_strategy=None, # Explicitly disable
    anomaly_loss_weight=0.0
)
print("\nXTFT model instantiated (anomaly detection disabled).")

Step 7: Compile and Train the Model

(This step remains the same as in the previous version of the artifact)

loss_fn_ex = combined_quantile_loss(quantiles=quantiles_ex)
model_ex.compile(
    optimizer=tf.keras.optimizers.Adam(learning_rate=0.005),
    loss=loss_fn_ex
    )
print("XTFT model compiled with combined quantile loss.")

# Dummy call to build model (optional)
try:
    dummy_s_ex = tf.zeros((1, s_dim_ex)) # s_dim_ex > 0
    dummy_d_ex = tf.zeros((1, time_steps_ex, d_dim_ex))
    dummy_f_ex = tf.zeros((1, time_steps_ex + forecast_horizons_ex, f_dim_ex))
    # model_ex([dummy_s_ex, dummy_d_ex, dummy_f_ex]) # Build
    # model_ex.summary(line_length=90)
except Exception as e:
    print(f"Model build/summary failed: {e}")

print("\nStarting XTFT model training (few epochs for demo)...")
history_ex = model_ex.fit(
    train_inputs_ex, y_t_train,
    validation_data=(val_inputs_ex, y_t_val),
    epochs=3, batch_size=4, verbose=1 # Reduced for gallery speed
)
print("Training finished.")
if history_ex and history_ex.history.get('val_loss'):
    val_loss = history_ex.history['val_loss'][-1]
    print(f"Final validation loss (quantile): {val_loss:.4f}")

Expected Output 7:

XTFT model compiled with combined quantile loss.

Starting XTFT model training (few epochs for demo)...
Epoch 1/3
12/12 [==============================] - 8s 86ms/step - loss: 0.3010 - val_loss: 0.4640
Epoch 2/3
12/12 [==============================] - 0s 8ms/step - loss: 0.1919 - val_loss: 0.5092
Epoch 3/3
12/12 [==============================] - 0s 9ms/step - loss: 0.1450 - val_loss: 0.4088
Training finished.
Final validation loss (quantile): 0.4088

Step 8: Make Predictions and Inverse Transform

(This step remains the same as in the previous version of the artifact)

print("\nMaking quantile predictions on validation set...")
predictions_scaled_ex = model_ex.predict(val_inputs_ex, verbose=0)
print(f"Scaled prediction output shape: {predictions_scaled_ex.shape}")

target_scaler_ex = scalers_ex.get(target_col_ex)
if target_scaler_ex is None:
    print("Warning: Target scaler not found. Plotting scaled values.")
    predictions_final_ex = predictions_scaled_ex
    y_val_final_ex = y_t_val
else:
    num_val_samples_ex = X_s_val.shape[0]
    num_quantiles_ex = len(quantiles_ex)
    if output_dim_ex == 1:
        pred_reshaped_ex = predictions_scaled_ex.reshape(-1, num_quantiles_ex)
        predictions_inv_ex = target_scaler_ex.inverse_transform(pred_reshaped_ex)
        predictions_final_ex = predictions_inv_ex.reshape(
            num_val_samples_ex, forecast_horizons_ex, num_quantiles_ex
        )
        y_val_reshaped_ex = y_t_val.reshape(-1, output_dim_ex)
        y_val_inv_ex = target_scaler_ex.inverse_transform(y_val_reshaped_ex)
        y_val_final_ex = y_val_inv_ex.reshape(
            num_val_samples_ex, forecast_horizons_ex, output_dim_ex
        )
        print("Predictions and actuals inverse transformed.")
    else:
        print("Multi-output inverse transform not shown, plotting scaled.")
        predictions_final_ex = predictions_scaled_ex
        y_val_final_ex = y_t_val

Expected Output 8:

Making quantile predictions on validation set...
Scaled prediction output shape: (12, 6, 3)
Predictions and actuals inverse transformed.

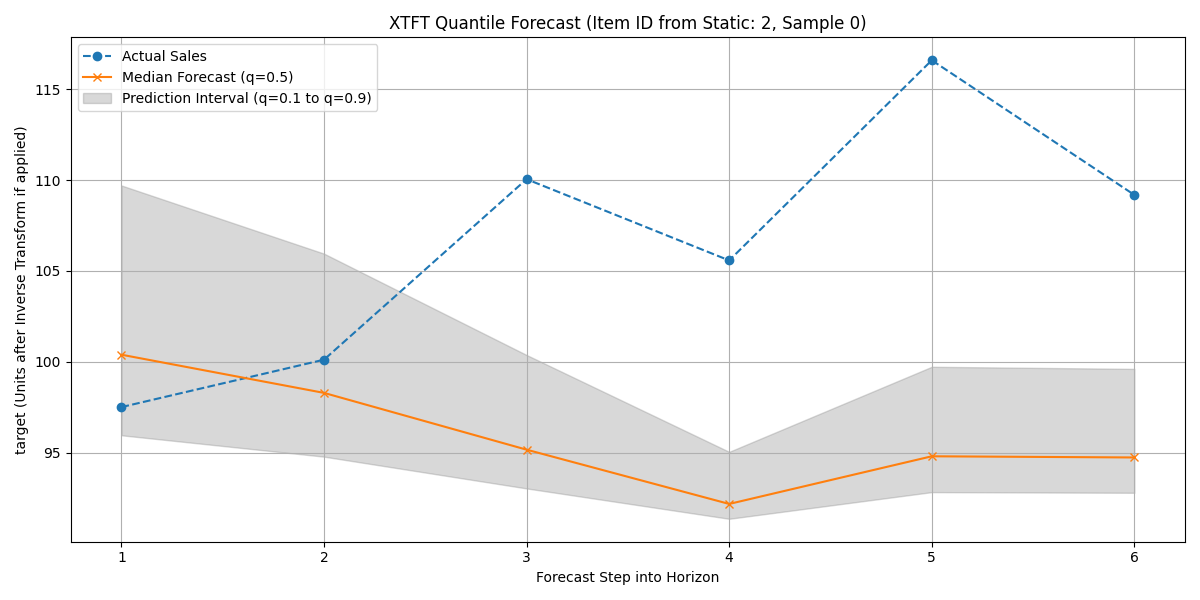

Step 9: Visualize Forecast for One Item

(This step remains the same. The visualization will now use the actual `X_val_static` to identify the item, as it contains features.)

sample_to_plot_idx_ex = 0 # Plot the first validation sequence's forecast

if y_val_final_ex is not None and predictions_final_ex is not None and \
   len(y_val_final_ex) > sample_to_plot_idx_ex:
    actual_vals_item_ex = y_val_final_ex[sample_to_plot_idx_ex, :, 0]
    pred_quantiles_item_ex = predictions_final_ex[sample_to_plot_idx_ex, :, :]
    forecast_steps_axis_ex = np.arange(1, forecast_horizons_ex + 1)

    # Get the ItemID for the plotted sample from X_val_static
    # Assuming 'series_id' is the first column in static_cols_ex
    item_id_plotted = X_s_val[sample_to_plot_idx_ex, 0]
    # If 'series_id' was label encoded, you might want to inverse_transform it here
    # For this example, make_multi_feature_time_series provides integer series_id

    plt.figure(figsize=(12, 6))
    plt.plot(forecast_steps_axis_ex, actual_vals_item_ex,
             label='Actual Sales', marker='o', linestyle='--')
    plt.plot(forecast_steps_axis_ex, pred_quantiles_item_ex[:, 1],
             label='Median Forecast (q=0.5)', marker='x')
    plt.fill_between(
        forecast_steps_axis_ex,
        pred_quantiles_item_ex[:, 0], pred_quantiles_item_ex[:, 2],
        color='gray', alpha=0.3,
        label='Prediction Interval (q=0.1 to q=0.9)'
    )
    plt.title(f'XTFT Quantile Forecast (Item ID from Static: {item_id_plotted:.0f}, Sample {sample_to_plot_idx_ex})')
    plt.xlabel('Forecast Step into Horizon')
    plt.ylabel(f'{target_col_ex} (Units after Inverse Transform if applied)')
    plt.legend(); plt.grid(True); plt.tight_layout()
    fig_path_ex = os.path.join(
        exercise_output_dir_xtft,
        "exercise_advanced_xtft_quantile_forecast.png"
        )
    # plt.savefig(fig_path_ex) # Uncomment to save
    # print(f"\nPlot saved to {fig_path_ex}")
    plt.show()
else:
    print("\nSkipping plot: Not enough data or predictions missing.")

Example Output Plot:

Visualization of the XTFT quantile forecast (median and interval) against actual validation data for a sample item.

Discussion of Exercise:

This exercise walked through a complete workflow for using the XTFT model for multi-step quantile forecasting using all three input types: static, dynamic, and future features. Key takeaways include:

• The use of make_multi_feature_time_series() to generate rich synthetic data.

• The importance of defining feature roles and appropriately scaling numerical inputs.

• Ensuring that static features (like series_id and base_level from make_multi_feature_time_series) are included when calling reshape_xtft_data() if they are to be used by the model. This results in static_input_dim > 0.

• Configuring XTFT for quantile output and using combined_quantile_loss().

• The ability to inverse-transform predictions for interpretation.

• Visualizing quantile forecasts to assess prediction uncertainty.

For real-world applications, extensive hyperparameter tuning (see ../hyperparameter_tuning/index) and more sophisticated validation strategies would be necessary.
